Data Collection

This page describes the data collection procedure for all the modules. We used DJI Mavic Mini for conducting the research experiments. The specifications of the UAV can be found at the official website .

Distance Between Adjacent Buildings

For estimating the distance between adjacent structures, the images are collected in 3 different modes: Frontal Mode, In-Between Mode and Roof Mode.

Fig. 1 Frontal Mode

Fig. 2 In-Between Mode

Fig. 3 Roof Mode

Frontal Mode

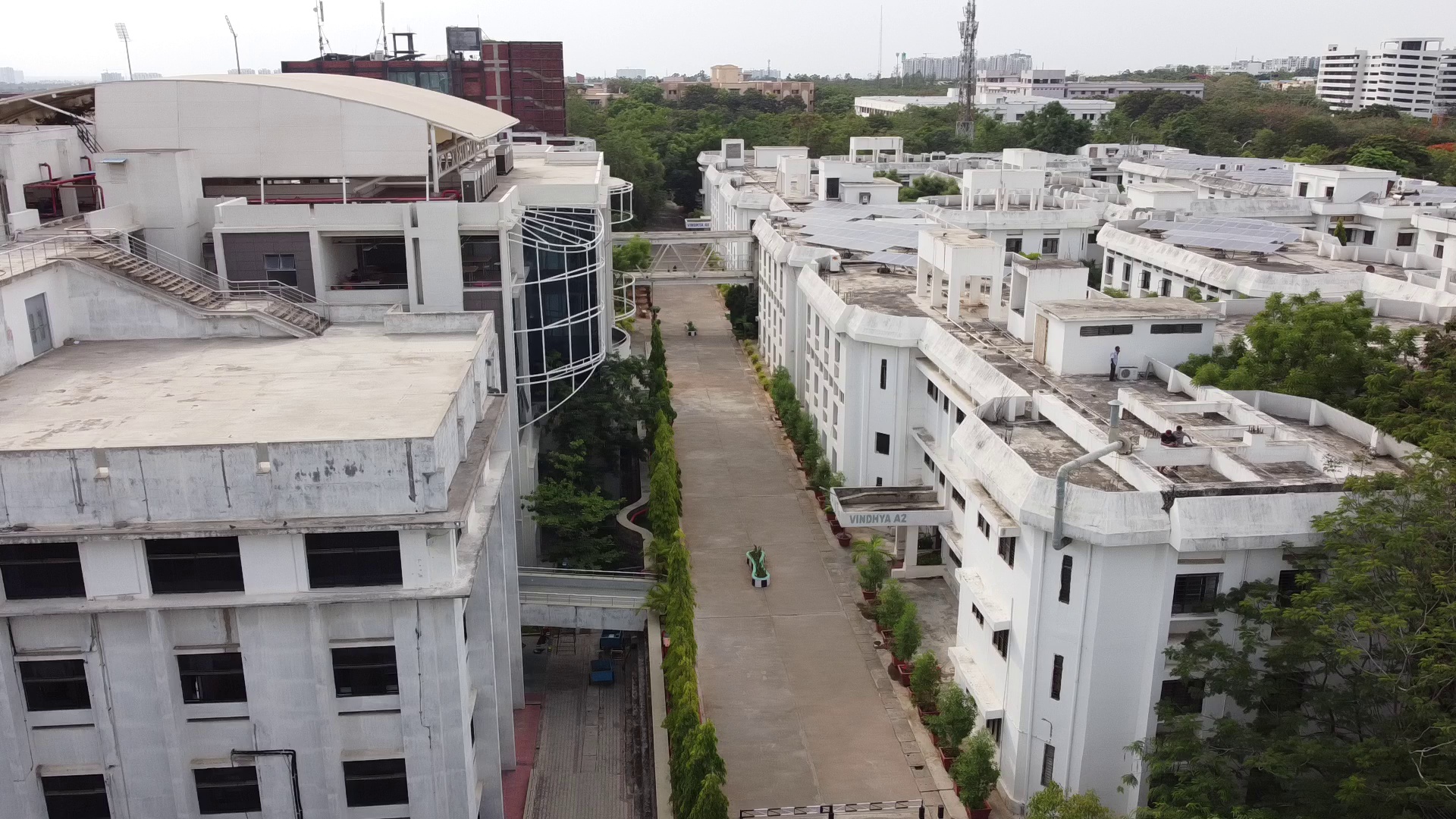

Fig. 1 Shows the frontal face of two adjacent buildings for which data was collected. In this mode, we focused on estimating the distance between the two buildings by analyzing only their frontal faces while flying a UAV with a forward-facing camera. This view is particularly helpful when there are impediments between the subject buildings and flying a UAV between them is challenging.

The video describes the workflow of data collection for Frontal Mode

In-Between Mode

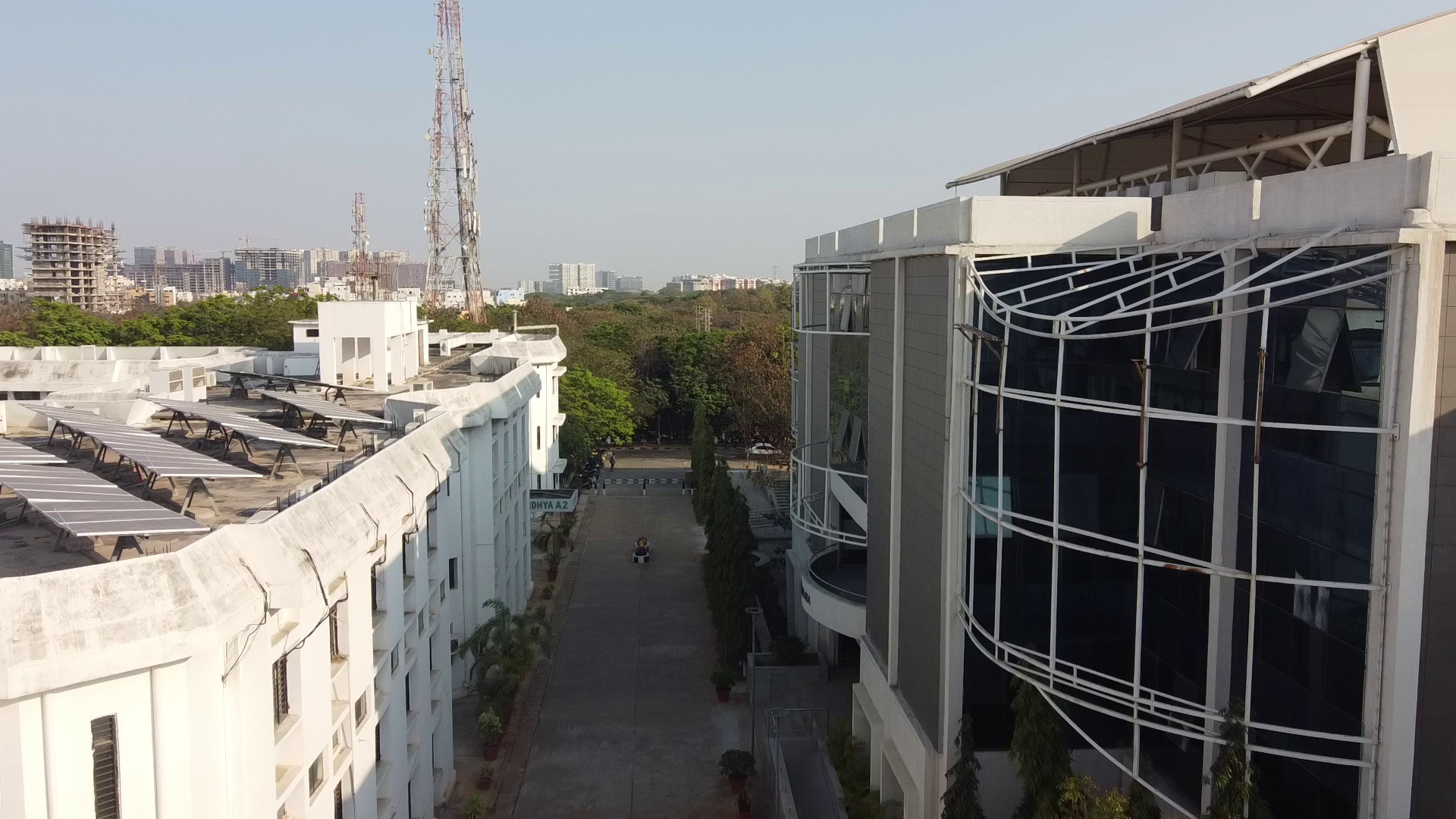

Fig. 2 Shows that the UAV’s point-of-view for the In-between Mode. The UAV is navigated in between the subject buildings along a path parallel to the facade with a forward-facing camera. This mode enables the operators to calculate distances when the subject buildings have irregular shapes.

The video describes the workflow of data collection for In-Between Mode

Roof Mode

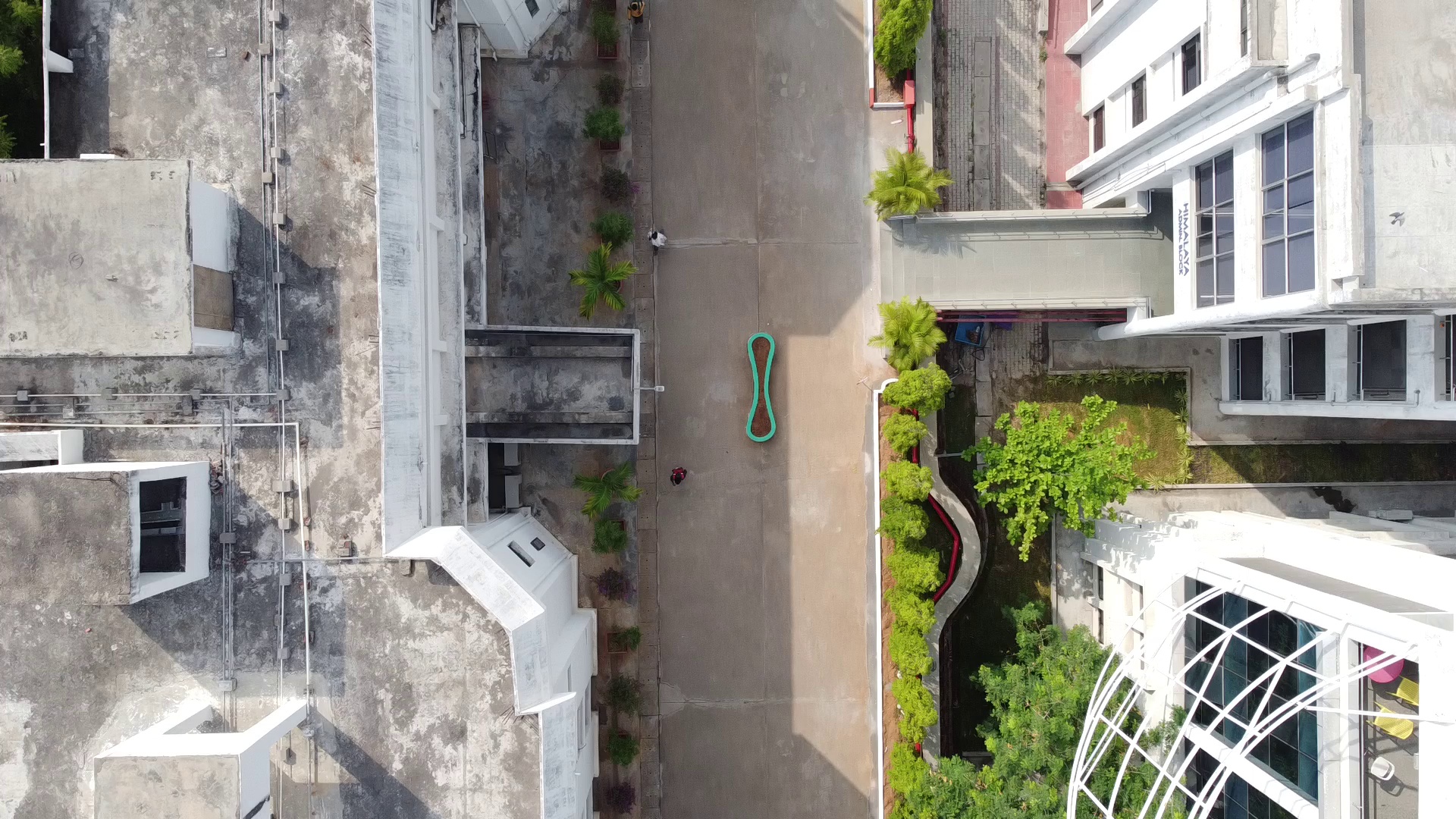

Fig. 3 Shows the UAV’s point-of-view for the Roof Mode. The UAV was navigated at a fixed altitude with a downward-facing camera so as to capture the rooftops of the subject buildings. The roof mode helps in tackling occlusions due to vegetation and other physical structures.

The video describes the workflow of data collection for Roof Mode

Plan Shape and Roof Area Estimation

For estimating the plan shape and roof area, the UAV was flown with a downward-facing camera over the roof at constant height. Our algorithm accounts for both orthoginal and non-orthogonal views of the roof.

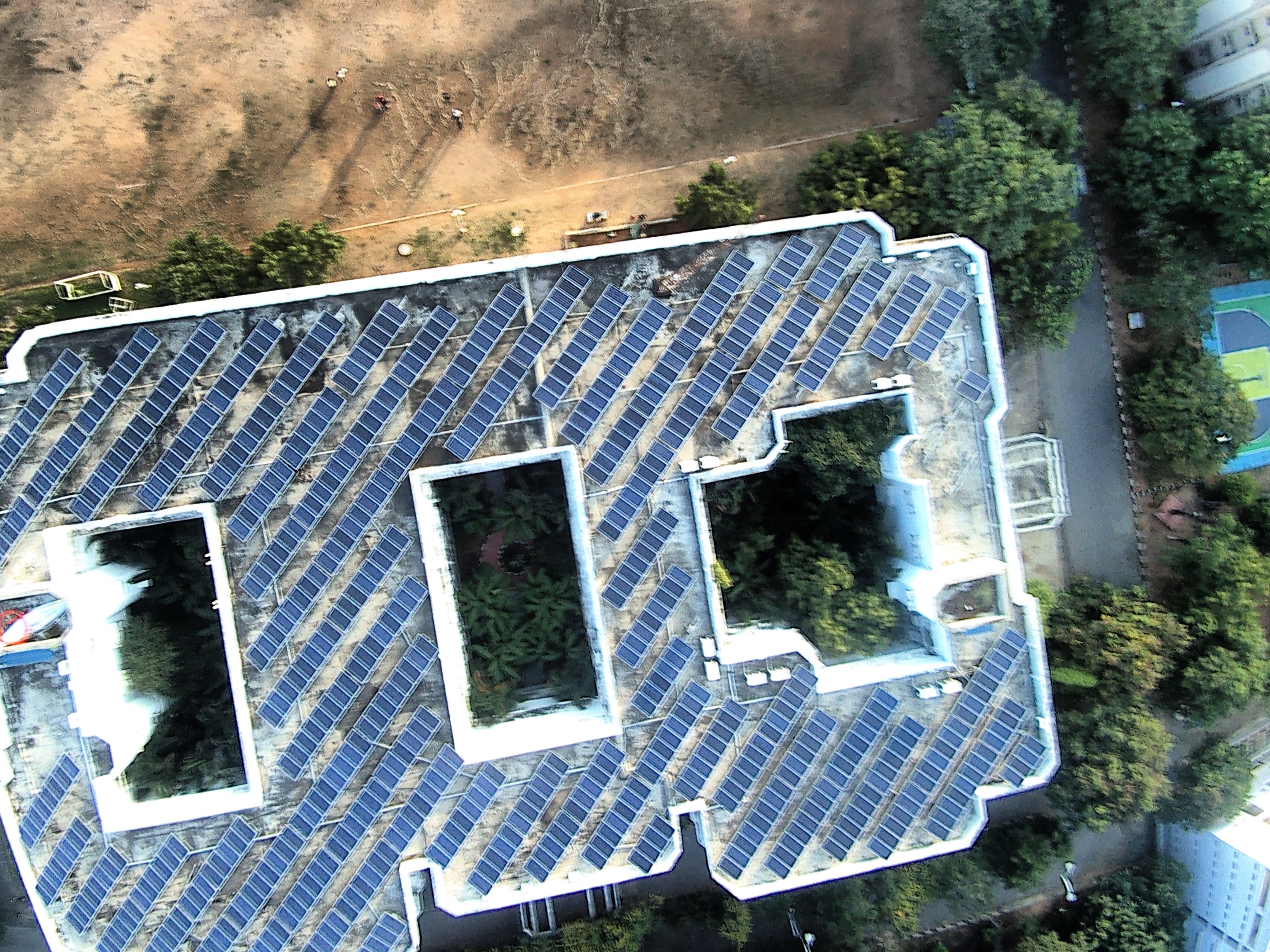

Fig. 4 Data Collection for Plan Shape and Roof Area Estimation

Roof Layout Estimation

For estimating the roof layout, the UAV was flown with a downward-facing camera over the roof at constant height.

Data Collection for Roof Layout Estimation

Crack Detection

For crack detection the UAV was flown with the forward facing camera near to cracks of the buildings. Our stack is able to segment the cracks from the images including shadows, occulsions or different viewpoints.

Data Collection for Crack Detection in buildings

Window Detection and Storey Height Estimation

For window detection and Storey Height Estimation the UAV was flown from ground floor to the top floor of the buildings. Depending upon the distance between building, we could fly the drone away from building to get large fov to cover two window_result1 in single frame.

Data Collection for Window Detection and Storey Height Estimation
